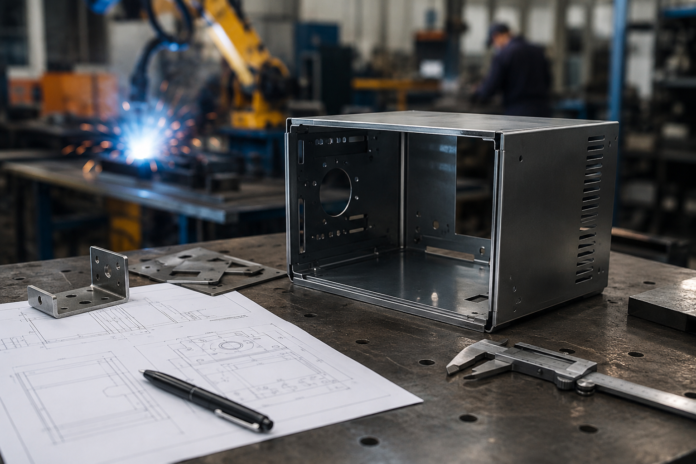

Taking a metal part from an early concept to repeatable production requires more than sending a CAD file for a quote. Successful projects balance performance, manufacturability, cost, timing, and quality from the beginning. Whether the goal is a single test bracket, a welded enclosure, or a recurring production assembly, planning each stage reduces expensive surprises later.
A well-organized custom metal fabrication project begins by defining what the first parts must prove. The prototype does not need to answer every question at once, but it should provide useful evidence about fit, function, strength, assembly, and appearance before the design is released for larger quantities.
1. Set Clear Prototype Goals
Start by identifying the purpose of the prototype. A form prototype may confirm that an enclosure looks right. A fit prototype may verify hole locations and clearances. A functional prototype may confirm movement or electrical access, while a structural prototype may need load testing. Separating these goals prevents teams from paying for unnecessary precision or finishing too early.
For example, a mounting bracket can first be tested for alignment with surrounding components before it is tested under its full expected load. Depending on the project, two to five prototype units may be more useful than one because they allow destructive testing, assembly trials, and comparison between revisions.
2. Review The Design Before Fabrication
An early design review helps catch issues that are inexpensive to fix in CAD but costly to discover after cutting, forming, machining, or welding. Confirm that drawings match the current model, dimensions are readable, tolerances are assigned only where needed, and critical features are clearly identified. This is the practical purpose of design for manufacturability, which connects product requirements with realistic production methods.
Design Review Checklist
- Verify material type, thickness, temper, and finish requirements.
- Mark critical dimensions and avoid overly tight tolerances on noncritical features.
- Check bend radii, bend allowances, and flange lengths.
- Confirm tools can reach holes, bends, welds, and machined details.
- Review weld access, fastener access, and final assembly sequence.
- Make sure inspection points can be measured after fabrication.
3. Choose Materials And Production Processes
Material selection affects nearly every other decision. Carbon steel is often chosen for strength and value, stainless steel for corrosion resistance and appearance, and aluminum when lower weight or corrosion resistance is important. Consider working environment, heat exposure, required stiffness, surface finish, joining method, and expected service life before selecting a grade.
Process selection should follow the design and production volume. Laser cutting works well for accurate profiles and openings. Waterjet cutting can suit heat-sensitive materials. Press brake forming creates bends and flanges, CNC machining supports detailed features and closer tolerances, and welding joins structural components. Powder coating, painting, or other finishing steps protect the part and affect final appearance.
The fastest prototype process is not always the best production process. A manually adjusted setup may be suitable for a few test parts, while fixtures, repeatable tooling, or automated handling may become worthwhile for a recurring order.
4. Build A Realistic Cost And Time Plan
A useful budget includes more than raw material and labor. Account for engineering time, setup, tooling or fixtures, inspection, finishing, packaging, shipping, and the likely cost of at least one revision cycle. A lower quoted unit price may not reduce total cost if it creates longer lead times, extra assembly work, or higher reject rates.
Planning Questions
- Will custom tooling or dedicated fixtures be required?
- Are material minimums or long-lead items involved?
- Should finishing occur before or after assembly?
- Will special reports, material certifications, or first-article inspection be needed?
- Does the schedule include time for testing, corrections, and approval?
5. Test The First Parts
Physical testing converts assumptions into evidence. Depending on the application, test fit, function, load capacity, vibration resistance, heat performance, corrosion exposure, and assembly time. Evaluate the part in conditions close to actual use whenever possible rather than relying only on visual inspection.
Record more than pass or fail. Note distortion, wear, difficult fastener access, poor tool clearance, finish damage, and unexpected assembly steps. Link every observation to a specific drawing revision so an outdated version does not accidentally return to production.
6. Use Feedback To Improve The Design
Prototype feedback should lead to controlled changes, not informal edits to separate files. Use revision numbers, documented approval steps, and updated CAD models and drawings. A simple process is to record the problem, identify the likely cause, propose a change, review its impact on cost and function, revise the documents, test again, and formally approve the new version.
7. Prepare For Repeatable Production
Making one acceptable part is different from making hundreds of consistent parts. Production readiness depends on repeatable setups, clear work instructions, standard material availability, reliable measurements, and a sequence that reduces handling errors. Operators should be able to load, position, fabricate, inspect, and package parts without relying on memory or guesswork.
A pilot run is valuable before a full release. A small batch may reveal inconsistent bends, fixture wear, variation between material lots, longer-than-expected cycle times, or assembly problems that a single prototype did not expose.
8. Create A Quality Control Plan
A quality plan identifies what will be checked, how it will be checked, how often inspections occur, and who approves the results. Focus inspection effort on features affecting safety, fit, function, customer requirements, and downstream assembly. Useful records may include approved drawings, material certificates, measurement results, nonconformance reports, and final acceptance criteria.
For advanced processes, measurement and process qualification are especially important because material behavior and machine settings can influence final performance. The National Institute of Standards and Technology provides research resources on metal manufacturing measurement and qualification that can help teams understand why consistent process controls matter.
9. Questions To Ask Before Choosing A Fabrication Partner
- Can the supplier support both prototype and production quantities?
- Which CAD files, drawing formats, and revision controls are accepted?
- How are design changes and material substitutions approved?
- What inspection records can be provided?
- Can finishing, assembly, packaging, and delivery requirements be handled?
- How are nonconforming parts and delivery risks communicated?
10. Common Planning Mistakes To Avoid
Common mistakes include ordering production quantities before testing, specifying tight tolerances everywhere, selecting material only by price, ignoring finishing thickness, and sending unclear or outdated drawings. A small enclosure can look correct after cutting and bending but still fail assembly because coating thickness affects fit or a fastener cannot be reached. Early assembly testing catches these issues before they multiply across a larger batch.
11. Considerations For Modern Fabrication Projects
In 2026, teams are placing greater emphasis on shared digital CAD files, revision control, material traceability, process records, flexible production for smaller batches, secure handling of technical data, and waste reduction. Automation can improve consistency when volume supports the setup cost, but it does not replace clear drawings, realistic testing, or disciplined quality control.
Conclusion
Moving from prototype to production works best when every stage answers a specific question. Define what the prototype must prove, select materials and processes that suit the application, document changes carefully, and validate production with a pilot run and quality plan. This approach helps teams control cost, reduce rework, and build metal parts that can be produced consistently.
